RECON® MK1™
The raw power of raw data.
MAKING YOUR OPERATIONS MORE EFFICIENT

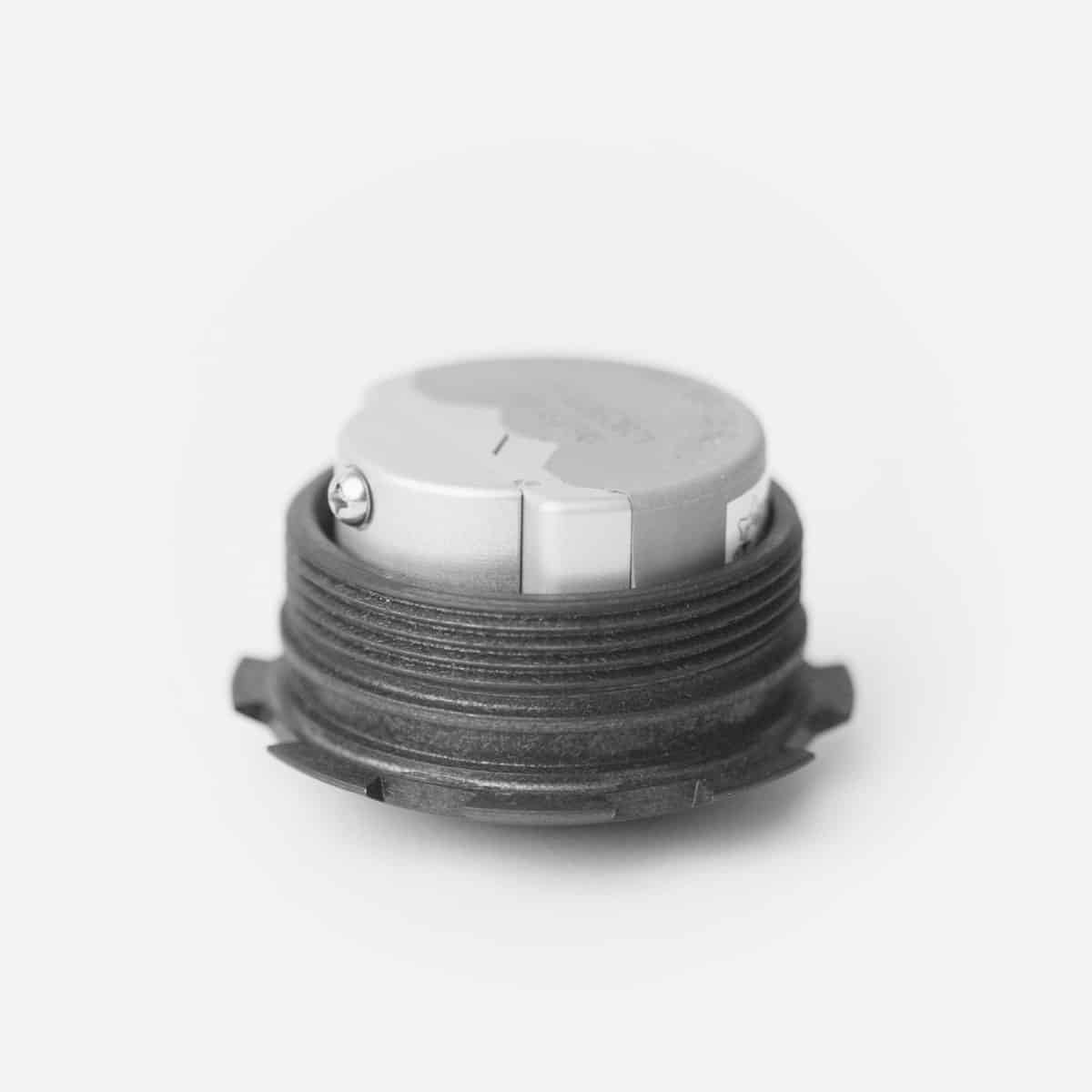

The patent-pending MK1 Environmental Logger, a rugged, miniature downhole logging device, reliable collects data in ultra-harsh environments.
The RECON® MK1™ retrofits in your existing downhole equipment (no carrier sub required) and will reliably capture data needed to make your operations more efficient.
High Capacity
- Data storage capacity: 8,192 MB
- Secondary backup data storage: 32 MB
- Battery life: >300 hours for XLB and 150 hours for STD battery
- Raw data stored at 1,000 Hz
Intelligence Spectrum
- 3-axis high-rate accelerometer ± 200 g at 1,000 Hz
- 3-axis low-rate accelerometer ± 16 g at 12 Hz
- Gyroscope rotational rate ± 1,500 rpm at 12 Hz
- Temperature -40°C to 150°C
Intuitive Reporting with Gateway™
- Instant on-site automatic report generation
- Statistical analysis
- Inclination calculations
- Expert review
- Data analysis service
The solution for BHA monitoring
With the RECON™ MK1™, you get…
- ON-SITE SUMMARY REPORT
generated in seconds, to make fast decision on operational parameters for subsequent runs. - NEAR-BIT HIGH-FIDELITY ENVIRONMENTAL DATA COLLECTION
for increasing efficiency on subsequent operations and drilling optimization without affecting the bottom hole assembly (BHA) design. - LOGGING FOR PREVENTATIVE MAINTENANCE
of equipment used in harsh environments. - DATA COLLECTION FOR FIELD TRIALS
of new tools during research and development when high frequency environmental data is not available from the R&D tool.
Ready to Deploy

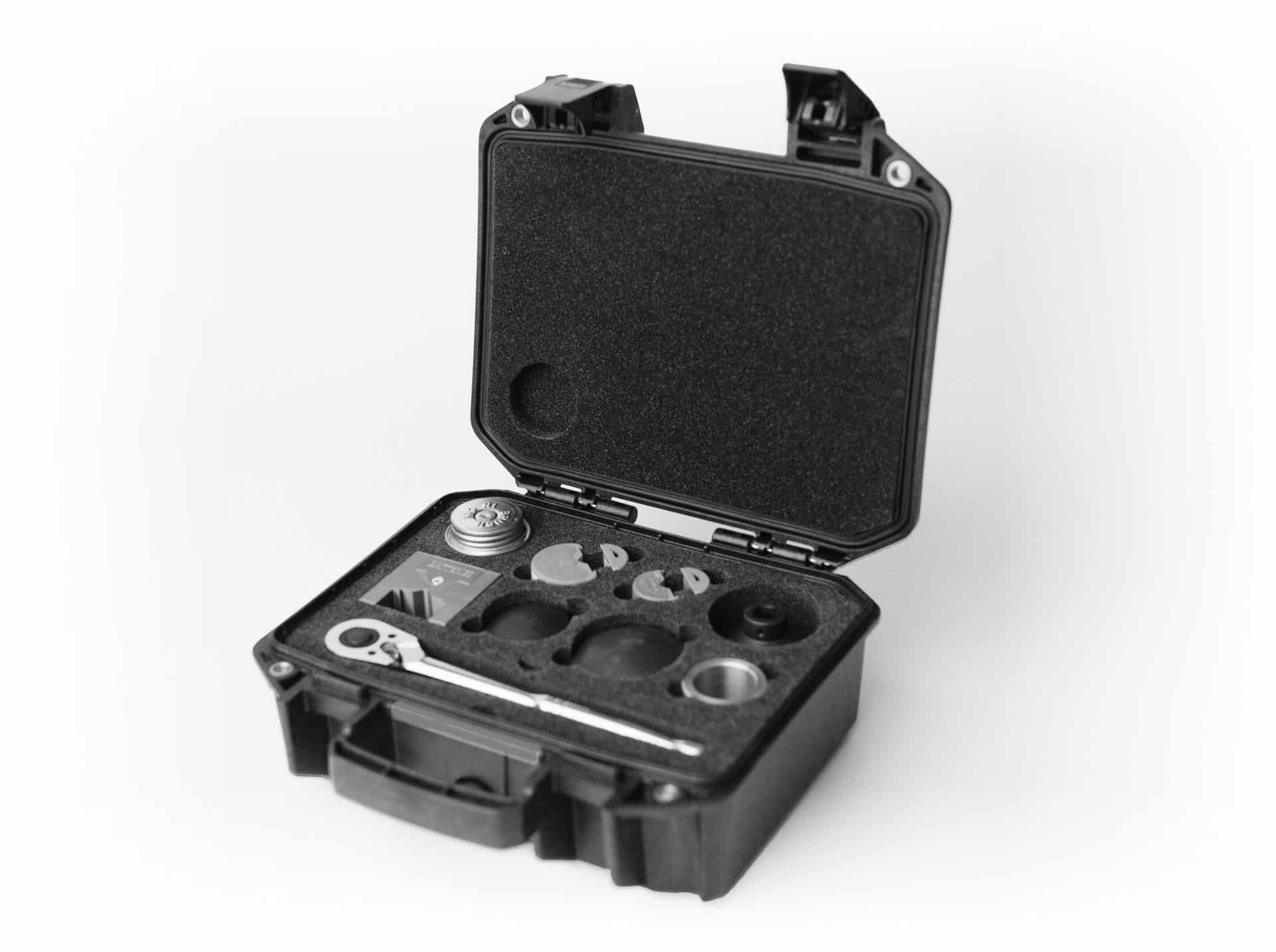

Field kit comes with everything you need to use the MK1 including spare parts, lubricants, and seals.
The MK1 is designed with installation and use flexibility in mind. Install in the shop prior to shipment to field, or on the rig site.
Feature Highlight: Battery Life Conservation
The MK1 can be set to wake and sleep modes under various conditions to conserve battery life and limit logging to only essential moments – even between subsequent runs.
